Name :
100kg,200kg,50kg Bending Beam Load CellItem Code :
RM-H1Brand :
RUIMALoad Cell RM-H1
Feature:
▲Capacity:50kg,100kg,200kg.
▲high precision and stability.
▲Anti overloading and side loading.
▲It can bear from press and pulling.
▲Sealed welding ,waterproof, anti-corrosion and suitable for all kinds of environment, Integral structure and easy installation.
▲Multi application for packing scales,belt scales,batching scales etc.

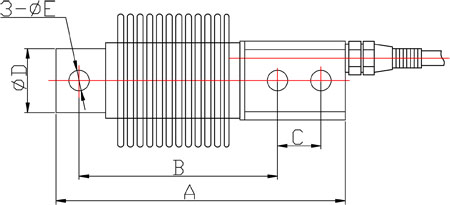

Dimensions:
|
Capacity(kg) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
|
10-300 |
123 |
82 |
18 |
26 |
8.5 |
|
500-1000 |
210 |
133 |
40 |
36 |
13 |
Technical Parameter:
Load Speciality
Maximum Capacity
10~1000kg
Accuracy Class
C3
Sensitivity
2.0±0.002% mv/v
Nonlinearity(Included
Hysteresis)
±0.02% F.S
Repeatability
±0.02% F.S
Creep(30Min)
±0.02% F.S
Temperature Speciality
Temperature Effect On Zero
Balance
±0.02% F.S/10ºC
Temperature Effect On
Sensitivity
±0.02% F.S/10ºC
Service Temperature Range
-30 ~ +70ºC
Compensated Temperature
Range
-20 ~ +60ºC
Machine Speciality
Safe Load Limit
150% F.S
Lateral Load Limit
200% F.S
Breaking Load
300% F.S
Electric Speciality
Input Resistance
400±10Ω
Output Resistance
350±2Ω
Insulation Resistance
≥5000MΩ
Zero Balance
±1% F.S
Recommend Excitation
10∨(DC)
Maximum Excitation
15∨DC
Else
Construction
Alloy steel
Cable Length
3M 5M
Protection Class
IP67
Citation
GB/T7551-2008 OIML R60
Model Of Connection
Input+:Red
Output-:White
Input-Black
Output+:Green
